SHRAPNEL
(FW-KAM-81)

Kamikaze with an Aerial Bomb 81 mm

BROCHURE [EN] SPECIFICATION [EN] SPECIFICATION [FR]

2

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

The SHRAPNEL (codename FW-KAM-81) drone is a fixed-wing loitering munition designed and produced by PR-DC with a unique high-performance box wing. The aircraft is made of composite materials, primarily of carbon-fiber-reinforced polymers. It is armed with a 81 mm aerial bomb (e.g. Krušik M72), which is easily slided through the aircraft frame and fixed before launch. Flight can be programmed to be fully autonomous according to target coordinates, or manually guided using a camera.

MISSION

Field-proven aerial bombs consisting of an M72 mortar shell and M68P1-D fuse specially designed for drone operations.

PR-DC SHRAPNEL drone typical mission

MAIN CHARACTERISTICS

Powertrain:

1 electric motor
Total mass:

10 kg (22 lb)
Optimal payload mass:

4 kg (8.8 lb)
Range:

60+ km (37+ miles)
Flight time:

60+ min
Cruise speed:

125 km/h (77 mph)
Dimensions:

1200 mm x 1070 mm x 315 mm (3.9 ft x 3.5 ft x 1ft)
Transport package dimensions:

1240 mm x 310 mm x 290 mm (4 ft x 1ft x 0.95 ft)
Guidance:

based on GNSS and camera
Power source:

lithium based battery
Remote controller:

IKA-CTRL with custom FlightControl App

Characteristics can be tailored to customer requirements.

ARMAMENT CHARACTERISTICS

Type and quantity:

aerial bomb with a diameter of 81 mm 470 mm (1.54 ft)
Bomb length with fuze:

286 mm (11.3")
Fuze type:

impact, superquick action, specially designed for drone use
Fuze safety:

two safety pins
Mass of a single bomb with fuze:

4100 g (9 lb)
Explosive charge:

trotyl (TNT)
Mass of explosive charge:

900 g (2 lb)
Blast radius (1 penetration / m2):

18 m (59 ft)
Safe operation temperature range):

-46°C to +63°C (-58°F to 145°F)

Armament can be tailored to customer requirements.

PHOTO GALLERY

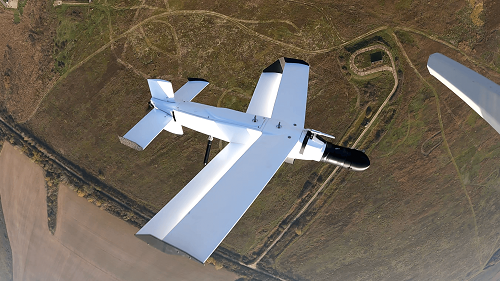

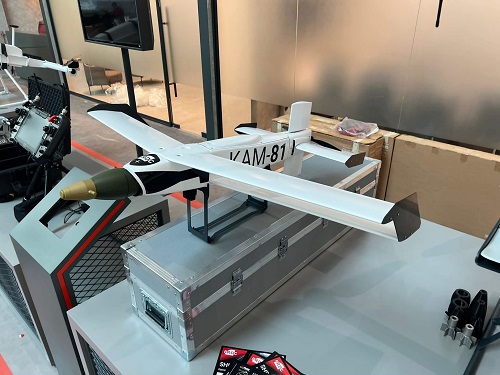

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

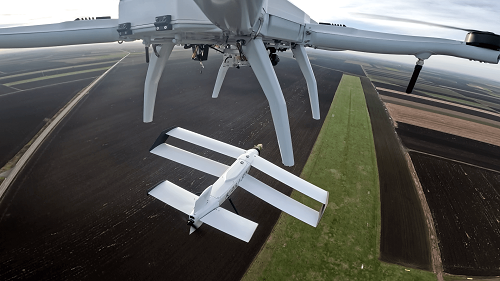

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

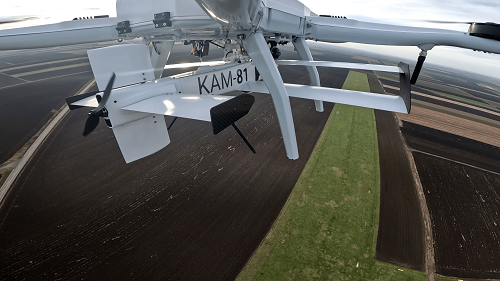

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

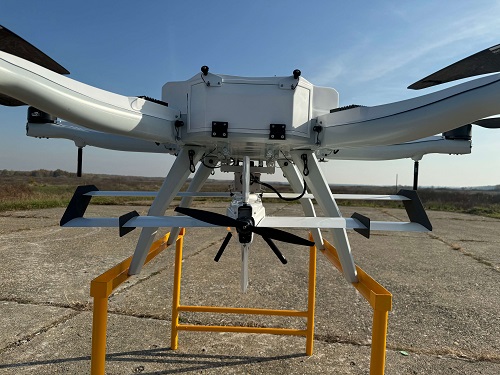

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

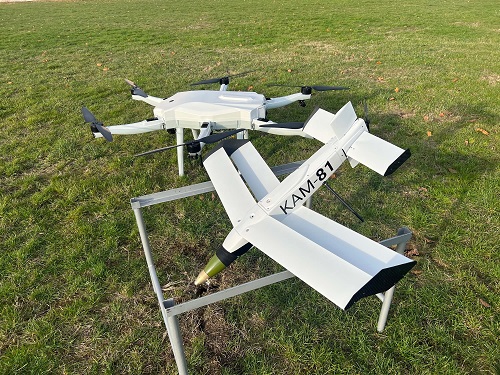

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

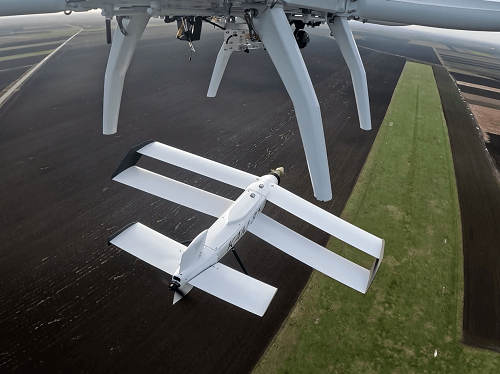

Fixed-wing kamikaze drone armed with an Aerial Bomb 81 mm.

VIDEO GALLERY

One Product. A Whole Line Behind It.

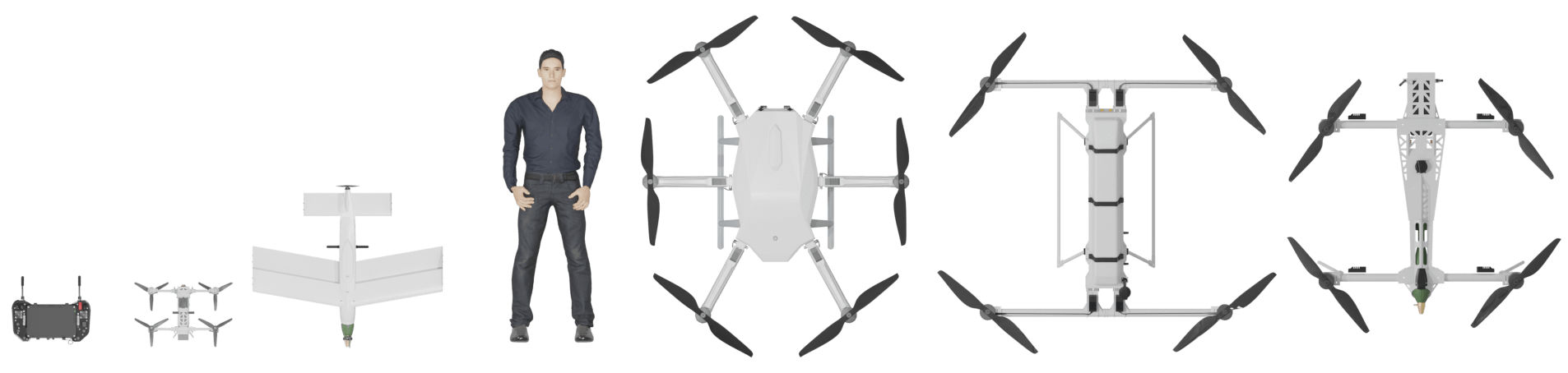

PR-DC products dimensions

OTHER PRODUCTS

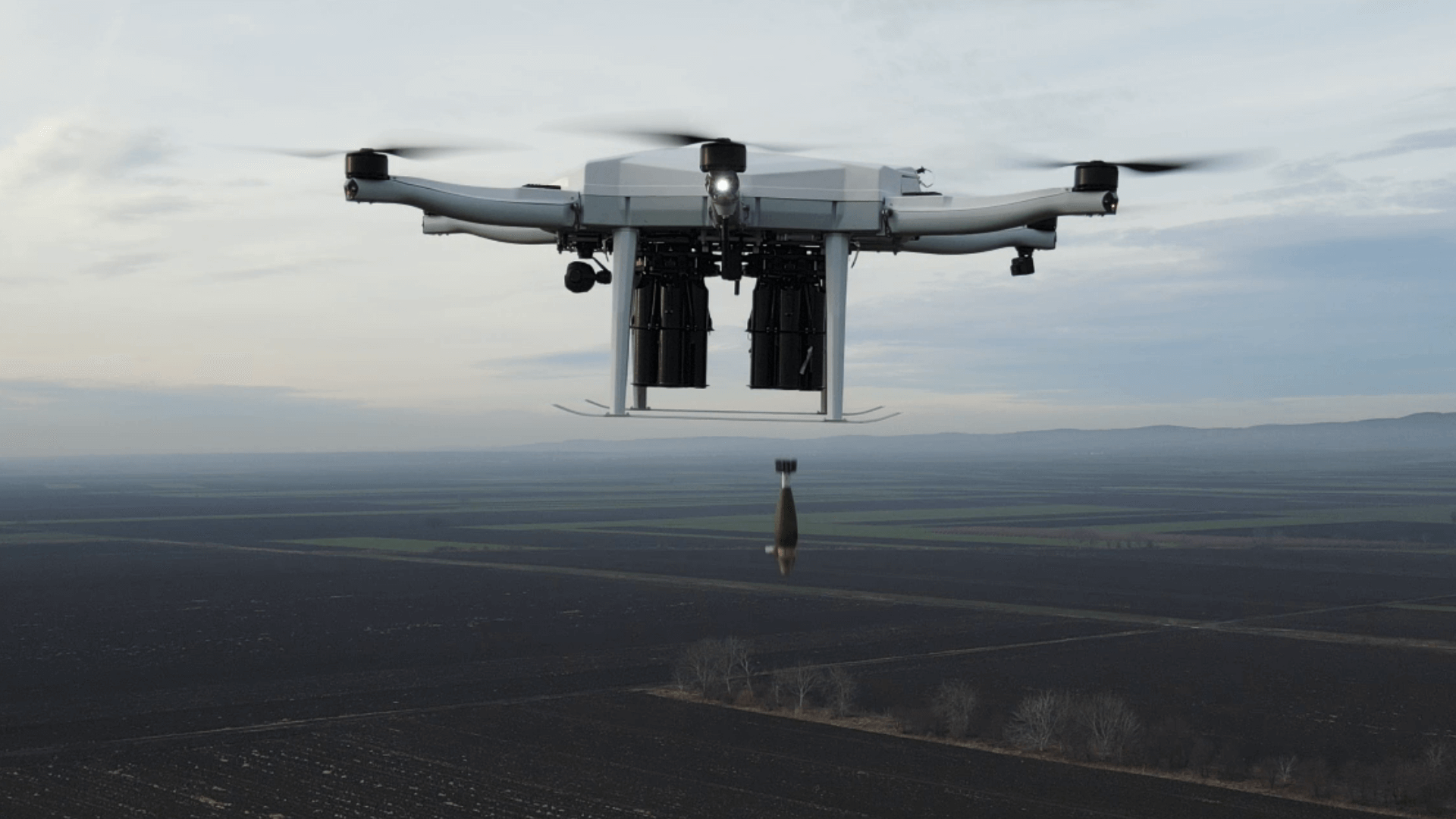

IKA-BOMBER <br> <span>(IKA-M-AB94)</span> - Armed with 12 Aerial Bombs 60 mm

1

IKA-BOMBER
(IKA-M-AB94)

Armed with 12 Aerial Bombs 60 mm

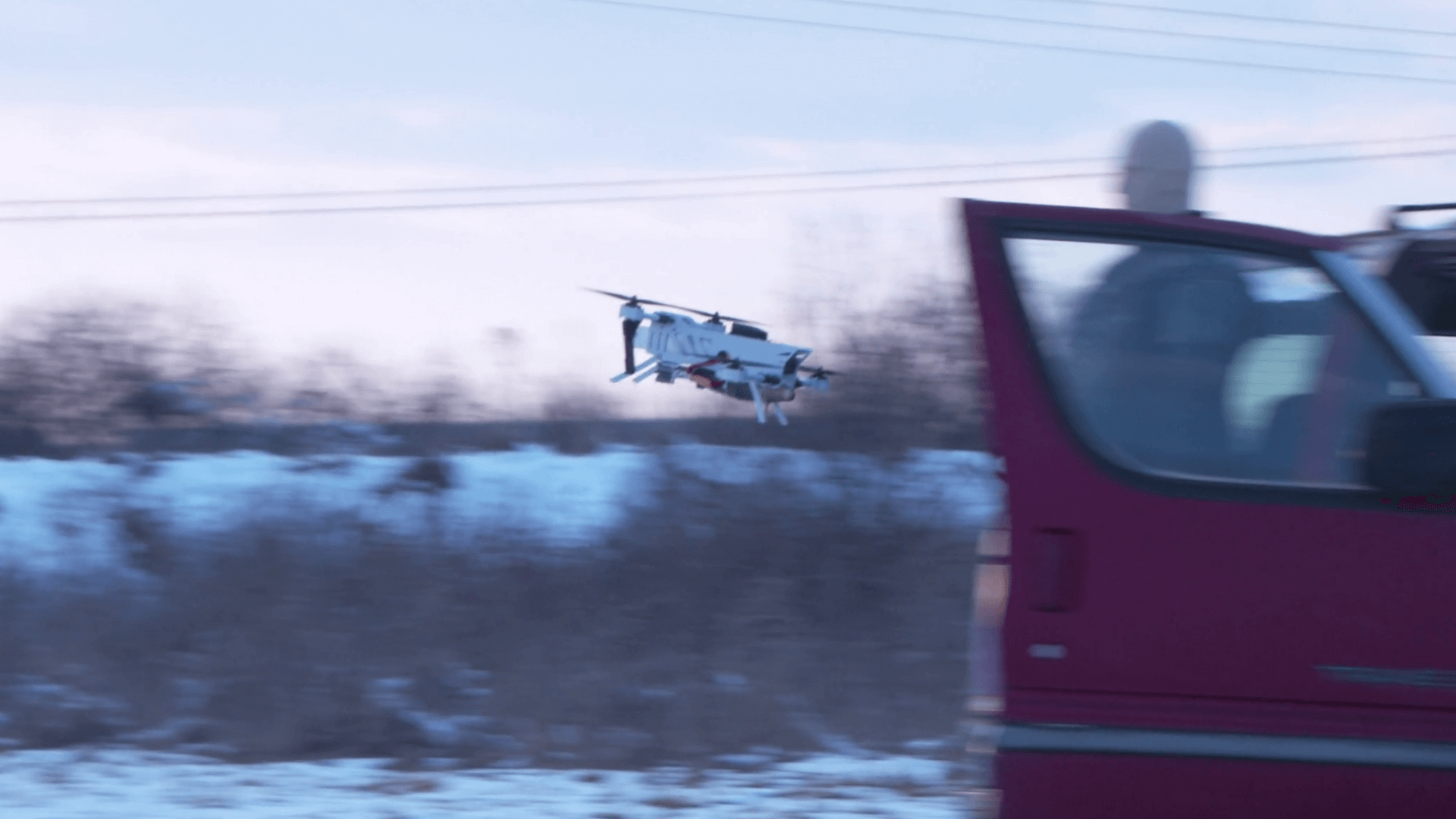

ODONAT <br> <span>(IKA-KAM-60)</span> - FPV kamikaze with an Aerial Bomb 60 mm

3

ODONAT
(IKA-KAM-60)

FPV kamikaze with an Aerial Bomb 60 mm

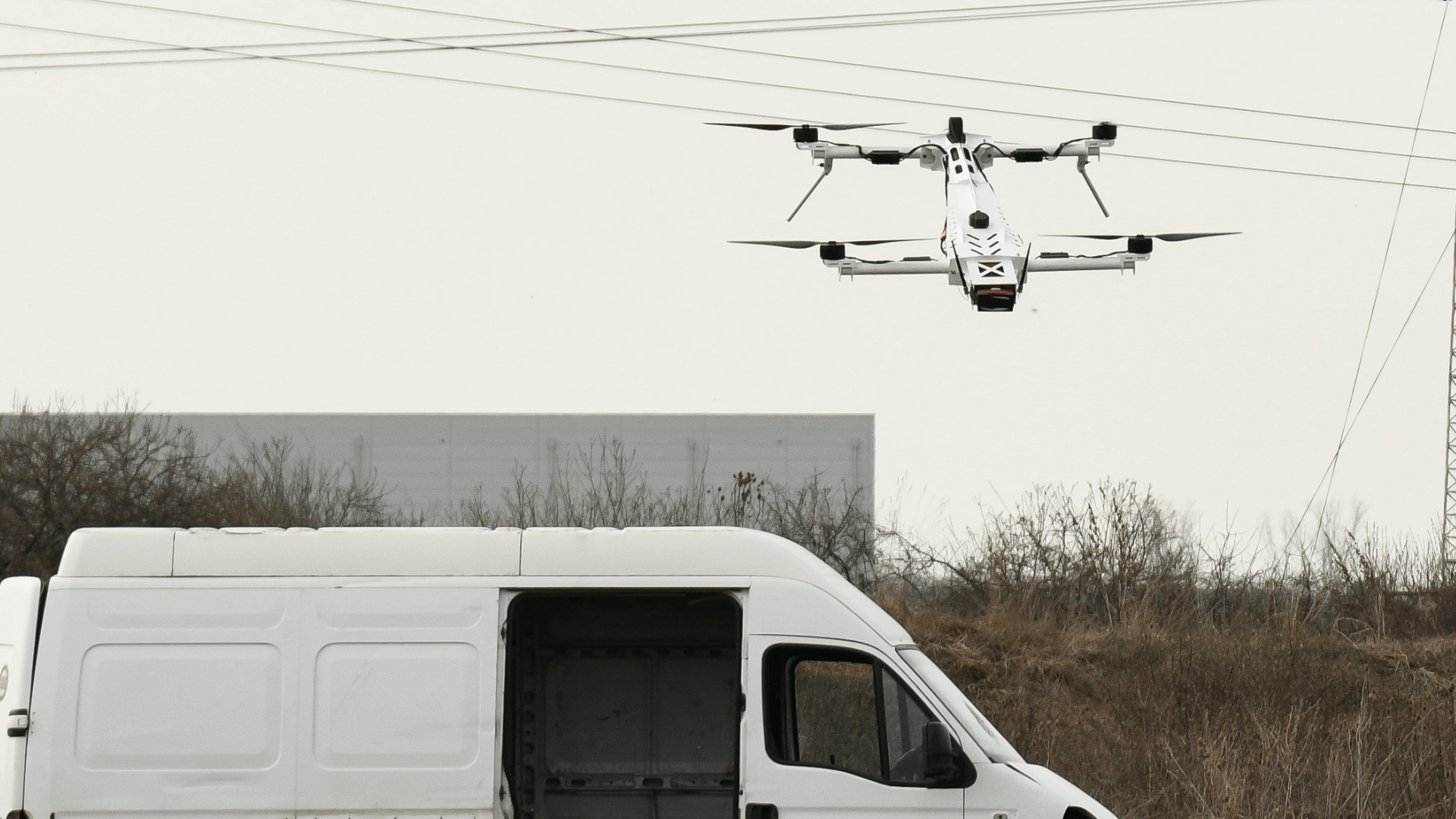

MANTIS <br> <span>(IKA-KAM-120)</span> - FPV kamikaze with an Aerial Bomb 120 mm

4

MANTIS
(IKA-KAM-120)

FPV kamikaze with an Aerial Bomb 120 mm

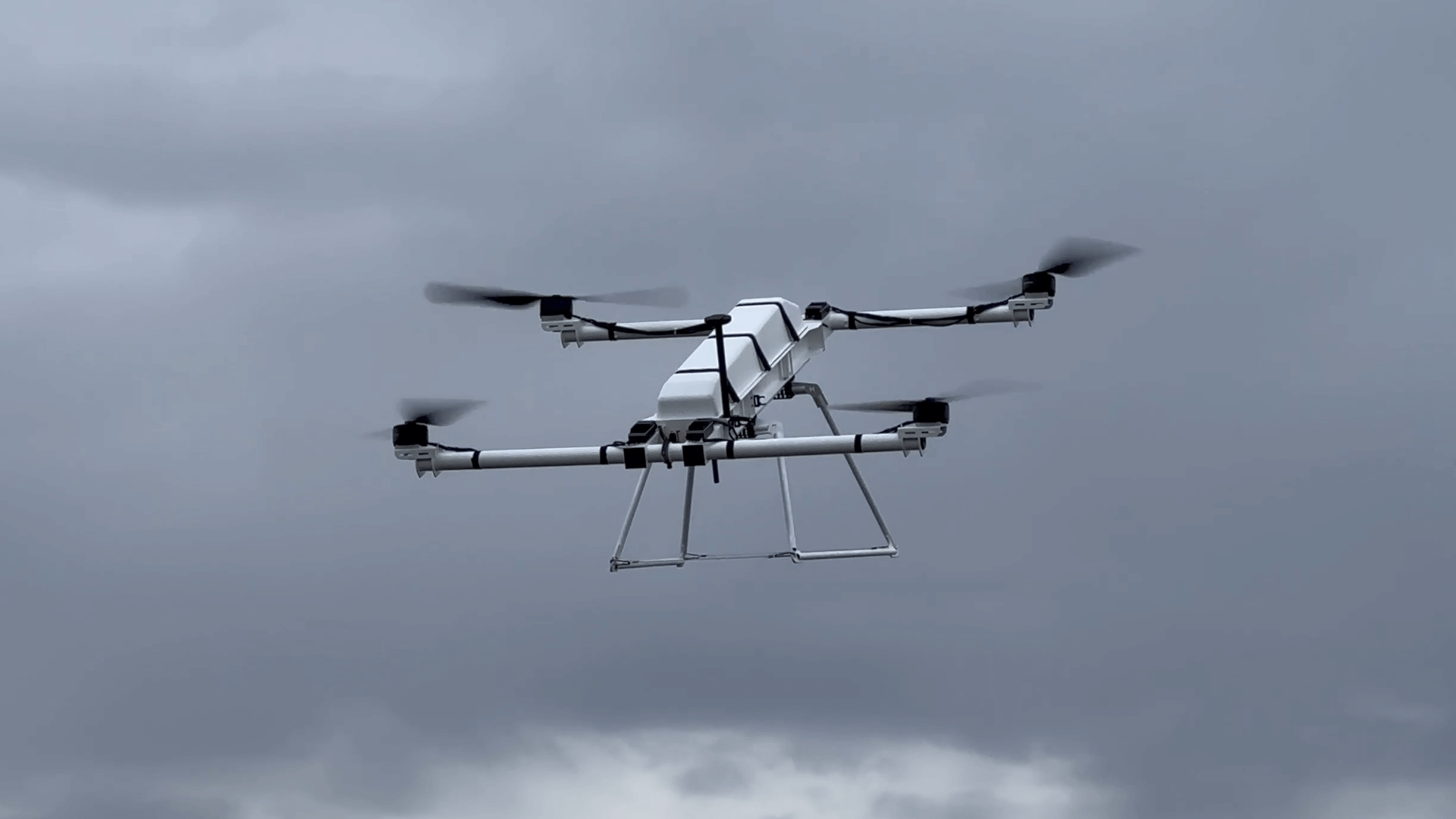

GANNET <br> <span>(RW-TARGET-150)</span> - Rotary-wing Target/Decoy drone

5

GANNET
(RW-TARGET-150)

Rotary-wing Target/Decoy drone

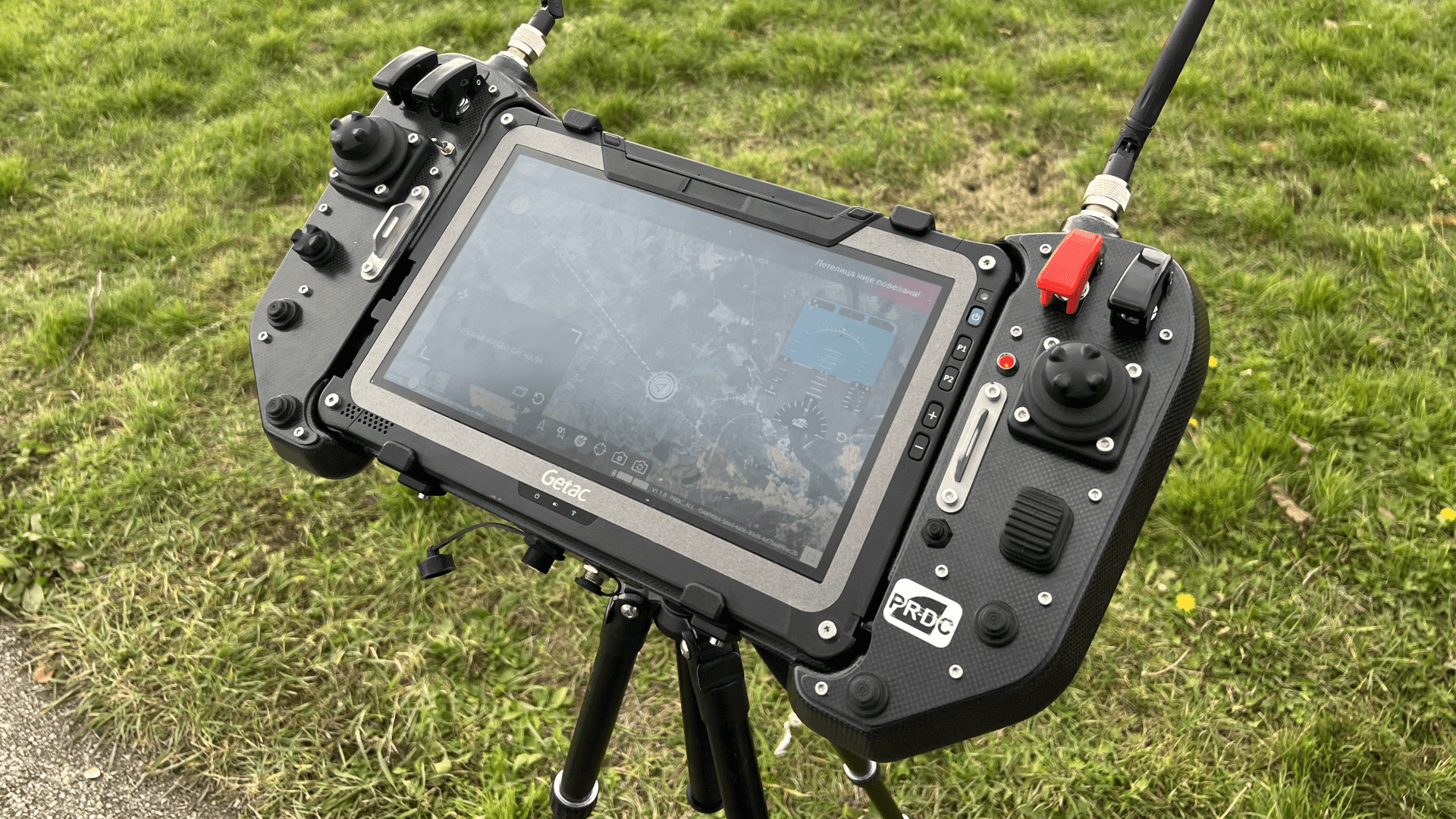

IKA-CTRL - Drone remote controller

6

IKA-CTRL

Drone remote controller

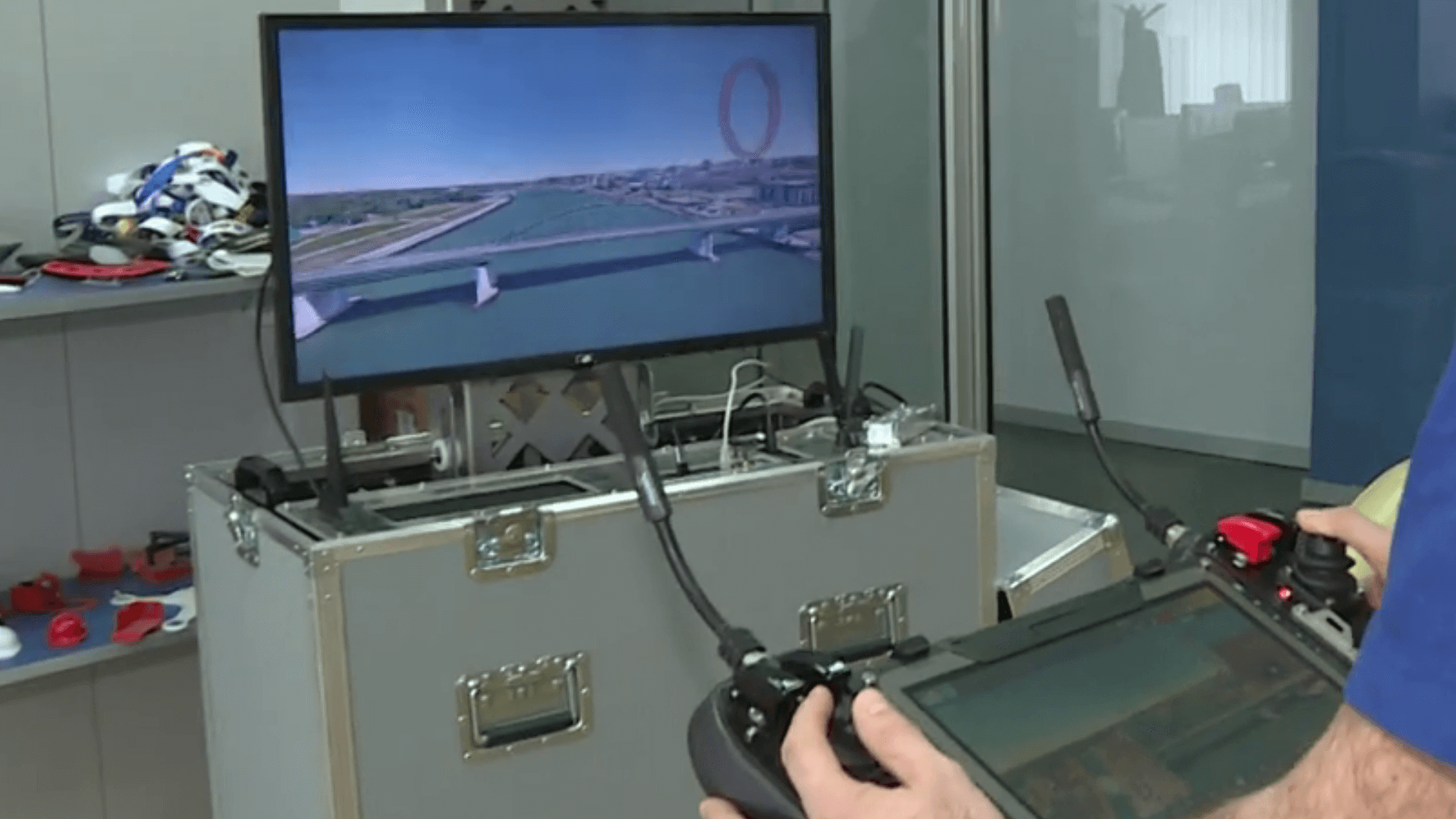

IKA-TRAINER - Training for drone operators

7

IKA-TRAINER

Training for drone operators

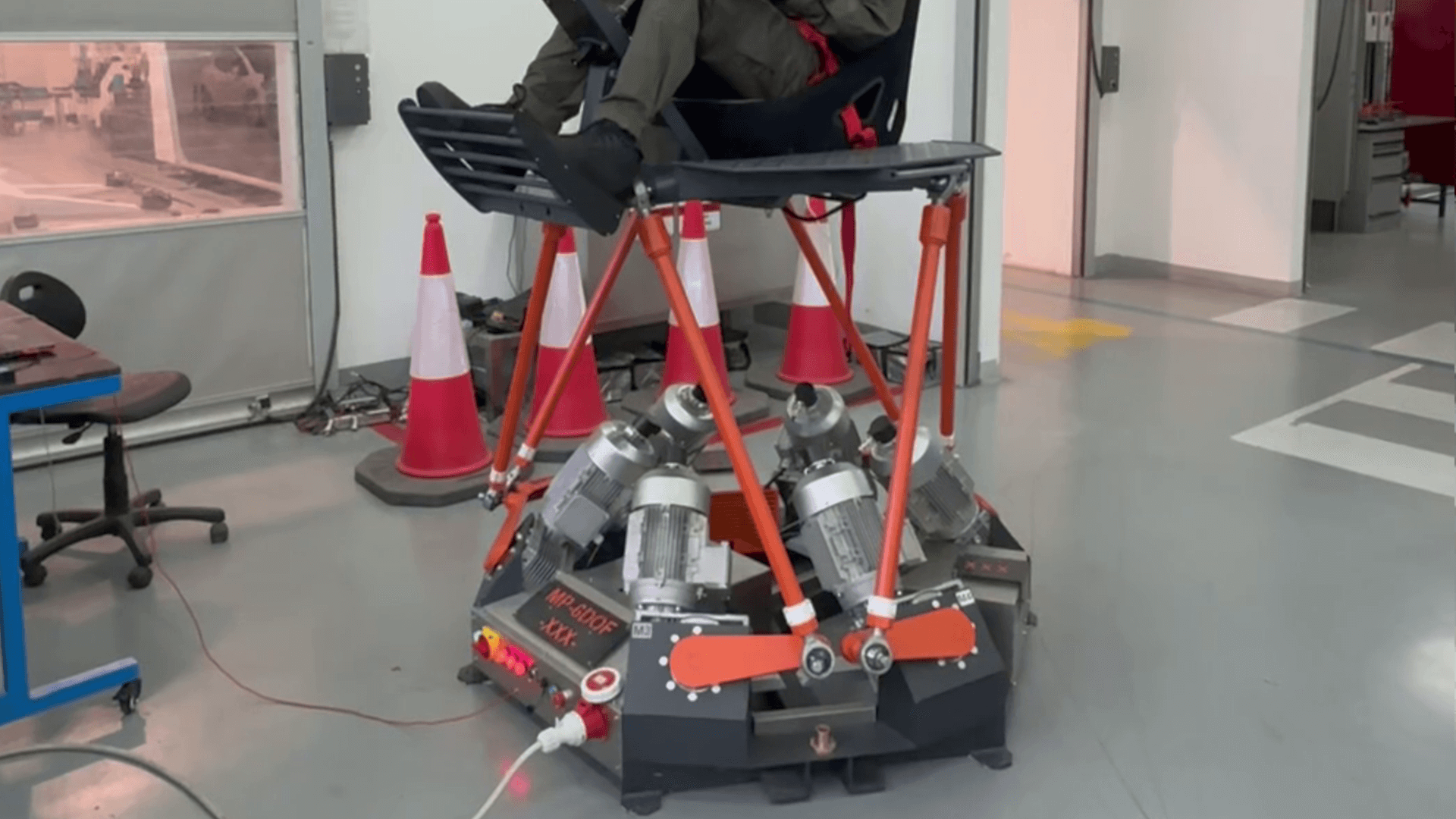

MP-6DOF - Motion platform for drone operators
