MANTIS
(IKA-KAM-120)

FPV kamikaze with an Aerial Bomb 120 mm

BROCHURE [EN] SPECIFICATION [EN] SPECIFICATION [FR]

4

Rotary-wing kamikaze drone armed with an Aerial Bomb 120 mm.

The MANTIS (codename IKA-KAM-120) drone is a rotary-wing FPV kamikaze drone with a range of up to 15 km, designed and manufactured by the PR-DC company in a quadcopter configuration. It is armed with a 120 mm diameter aerial bomb (like Krušik M62), which is quickly and easily attached to the aircraft's structure before launch. The flight can be fully autonomous according to a predetermined path and target coordinates, or manually guided using a camera. Drone can be controlled over radio or fiber optic.

MISSION

Field-proven aerial bombs consisting of an M62 mortar shell and M68P1-D fuse specially designed for drone operations.

PR-DC MANTIS drone typical mission

MAIN CHARACTERISTICS

Powertrain:

4 BLDC electric motors
Optimal payload mass:

12.6 kg (27.8 lb)
Range:

up to 15 km (up to 9 miles)
Dimensions:

2050 mm x 1750 mm x 530 mm (6.72 ft x 5.74 ft x 1.74 ft)
Transport package dimensions (set of three):

1500 mm x 800 mm x 400 mm (4.92 ft x 2.62 ft x 1.31 ft)
Maximum take-off mass:

34 kg (75 lb)
Guidance:

based on GNSS and camera
Power source:

lithium based battery
Remote controller:

IKA-CTRL with custom FlightControl App

Characteristics can be tailored to customer requirements.

ARMAMENT CHARACTERISTICS

Type:

aerial bomb with a diameter of 120 mm
Bomb length with fuze:

606 mm (23.8")
Fuze type:

impact, superquick action, specially designed for drone use
Fuze safety:

two safety pins
Mass of a single bomb with fuze:

12600 g (27.8 lb)
Explosive charge:

trotyl (TNT)
Mass of explosive charge:

2400 g (5.3 lb)
Blast radius (1 penetration / m2):

18 m (59 ft)
Safe operation temperature range):

-30ºC to +50ºC (-22ºF to 122ºF)

Armament can be tailored to customer requirements.

Unjammable Communication

Radio or Fiber Optic based bidirectional communication.

PHOTO GALLERY

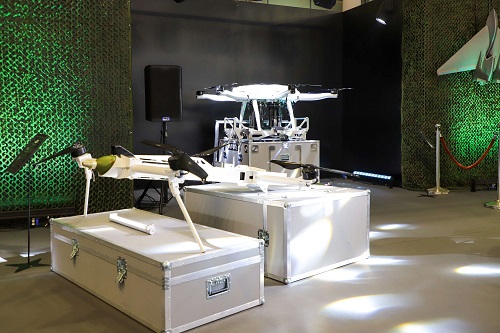

Rotary-wing kamikaze drone armed with an Aerial Bomb 120 mm.

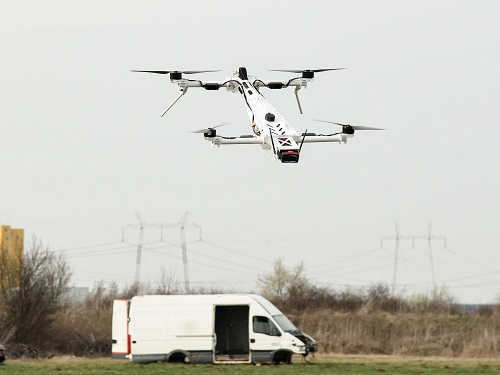

Rotary-wing kamikaze drone armed with an Aerial Bomb 120 mm.

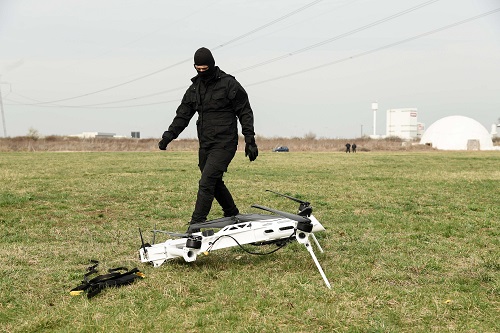

Rotary-wing kamikaze drone armed with an Aerial Bomb 120 mm.
