ODONAT
(IKA-KAM-60)

FPV kamikaze with an Aerial Bomb 60 mm

BROCHURE [EN] SPECIFICATION [EN] SPECIFICATION [FR]

3

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.

The ODONAT (codename IKA-KAM-60) drone is a rotary-wing FPV kamikaze drone with a range of up to 15 km, designed and manufactured by the PR-DC company in a quadcopter configuration. It is armed with a 60 mm diameter aerial bomb (like Krušik M73), which is quickly and easily attached to the aircraft's structure before launch. The flight can be fully autonomous according to a predetermined path and target coordinates, or manually guided using a camera. Drone can be controlled over radio or fiber optic.

MISSION

Field-proven aerial bombs consisting of an M73 mortar shell and M68P1-D fuse specially designed for drone operations.

PR-DC ODONAT drone typical mission

MAIN CHARACTERISTICS

Powertrain:

4 BLDC electric motors
Optimal payload mass:

1.3 kg (3 lb)
Range:

up to 15 km (up to 9 miles)
Dimensions:

660 mm x 470 mm x 235 mm (2.2 ft x 1.5 ft x 0.8 ft)
Transport package dimensions (set of three):

620 mm x 480 mm x 290 mm (2 ft x 1.6 ft x 0.95 ft)
Maximum take-off mass:

4 kg (8.8 lb)
Guidance:

based on GNSS and camera
Source of energy:

Lithium battery
Remote controller:

IKA-CTRL with custom FlightControl App

Characteristics can be tailored to customer requirements.

ARMAMENT CHARACTERISTICS

Type and quantity:

aerial bomb with a diameter of 60 mm
Bomb length with fuze:

286 mm (11.3")
Fuze type:

impact, superquick action, specially designed for drone use
Fuze safety:

two safety pins
Mass of a single bomb with fuze:

1350 g (3 lb)
Explosive charge:

trotyl (TNT)
Mass of explosive charge:

250 g (0.55 lb)
Blast radius (1 penetration / m2):

10 m (33 ft)
Safe operation temperature range):

-30°C to +50°C (-22°F to 122°F)

Armament can be tailored to customer requirements.

Unjammable Communication

Radio or Fiber Optic based bidirectional communication.

Modular layer-based electronics architecture

In-field adaptation to user preferences without any special tools: digital or analog, radio or fiber optic, or a combination of both.

PHOTO GALLERY

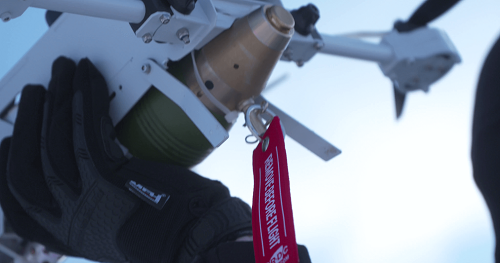

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.

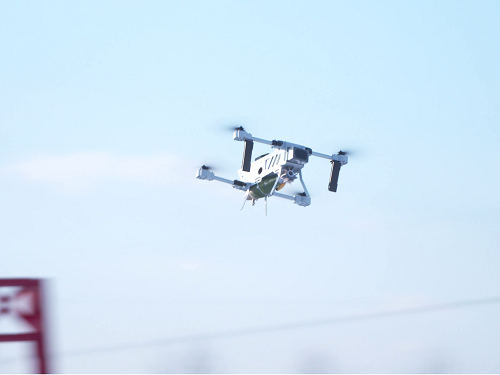

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.

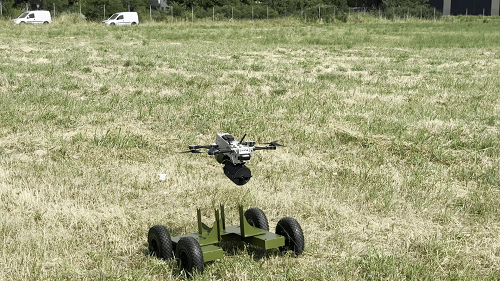

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.

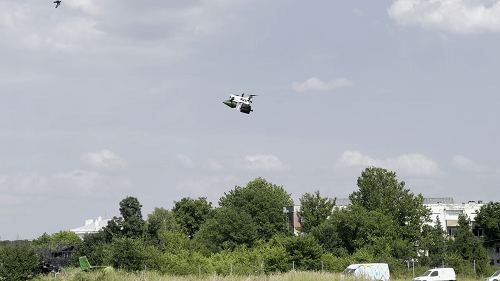

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.

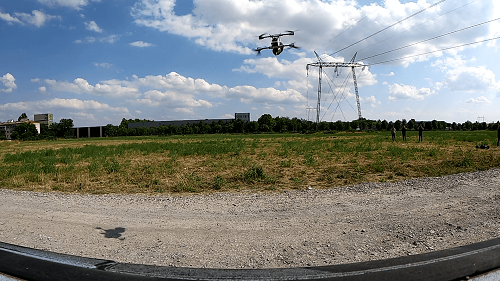

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.

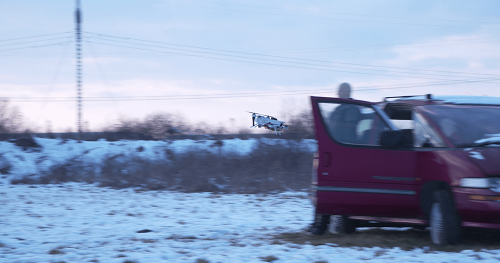

Rotary-wing kamikaze drone armed with an Aerial Bomb 60 mm.
